Módulo Controlador DC p/ Motores, Luzes

Descrição

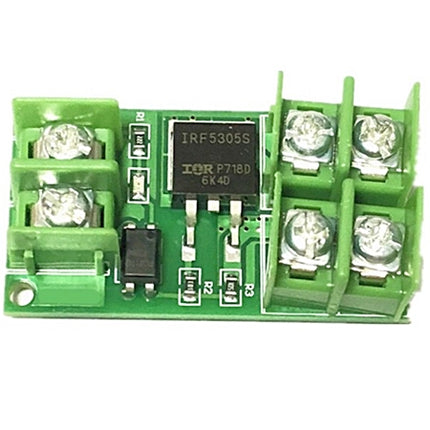

1: FET module, the input and output are completely isolated.
2: Signal trigger terminal: digital high and low level. Can be connected to the microcontroller IO port, PLC interface, DC power supply, etc.
3: Input signal voltage: 3V~24V  current: about 5ma.
4: The output can control high-power equipment, motors, bulbs, LED strips, DC motors, micro pumps, solenoid valves, etc.
5: Output controlled voltage: 5V~36V. Current: less than 5A, more than 5A need to add heat sink, the maximum can not exceed 20A.
6: Using the original F5305S power FET, you can input PWM, control motor speed, brightness of the lamp, etc.
Formulário do produto

1: FET module, the input and output are completely isolated.  2: Signal trigger terminal: digital high and low level. Can... Ler mais

Levantamento gratuito na loja (Localização)

Referência: FUN-MD9062
Código de barras: 5000000033034

1 em stock Enviamos em 24 horas

€7,95 €6,95 C/ IVA

    • Gostaria que fosse enviado ainda hoje ? Encomende dentro de: Feb 18, 2025 17:00:00 +0000

    Descrição

    1: FET module, the input and output are completely isolated.
    2: Signal trigger terminal: digital high and low level. Can be connected to the microcontroller IO port, PLC interface, DC power supply, etc.
    3: Input signal voltage: 3V~24V  current: about 5ma.
    4: The output can control high-power equipment, motors, bulbs, LED strips, DC motors, micro pumps, solenoid valves, etc.
    5: Output controlled voltage: 5V~36V. Current: less than 5A, more than 5A need to add heat sink, the maximum can not exceed 20A.
    6: Using the original F5305S power FET, you can input PWM, control motor speed, brightness of the lamp, etc.
