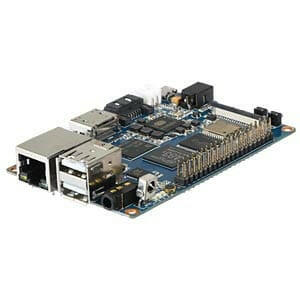

Descrição
- CPU: Allwinner 64 Bit Quad Core ARM Cortex A53 1.2 GHz CPU
- GPU: Dual core Mali 400 MP2 GPU
- Memoria: 2GB LPDDR3 (shared with GPU)
- Storage: MicroSD slot supports up to 256GB expansion & 8G eMMC flash (option 16/32/64G)
- Network: 10/100/1000 Mbit/s Ethernet + Wi-Fi 802.11 b/g/n + Bluetooth BT4.0
- Video Entrada: A entrada CSI permite ligar um modulo de câmara
- Video Saída: high-definition video playback & 2K HDMI port and multi-channel audio output (NO H. / X.265 capabilities!!!)
- Audio Entrada: On board microphone
- Audio Saída: 3.5mm jack and HDMI
- USB portas: USB 2.0 PORT (x2), USB OTG (x1)
- Controle Remoto: IR Receptor (x1)
- GPIO: 40 Pin Header : GPIO (x28) and power (+5V, +3.3V and GND). Some of I/O Pin can be used for specific functions as UART, I2C, SPI or PWM
- Switches: Reset, Power and U-boot LED Power Status and 8P8C
- Alimentação: 5 volt @2A via DC Power and/or Micro USB (OTG)
- Dimensões & Peso: 92x60mm, 48g
- Sistema Operativo: Android, Linux, etc...
